Ceramic & Plastic

Media-Ceramic and Polyester Resin

Ceramic and polyester resin (plastic) Medias provide a superior finish to a wide variety of parts when added to a mass finishing machine. While ceramic media can be used on all metal types, polyester resin media is perfect for softer metals such as aluminum, brass, or copper where impingement may cause a problem.

Chosen by SHAPE, SIZE, and, COMPOSITION (CUT), media determination is based on the dimensions of the part as well as the required APPLICATION and desired finish.

SHAPESTANDARD SIZES
(A x B x C)
APPLICATION
Angle Cut Triangles-20°or 22°Angle Cut Triangles-20°or 22°3/8″x 3/16″ or 1/4″
3/8″ x 3/8″
5/8″ x 3/16″ or 1/4″
5/8″ x 1/2″ x 5/16″
5/8″ x 3/8″
5/8″ x 9/16″ or 5/8″
7/8″ x 1/4″
7/8″ x 5/16″ or 3/8″
7/8″ x 5/8″
7/8″ x 7/8″ or 15/16″
15/16″ x 3/4″ x 3/8″
1 1/8″ x 5/16″ or 3/8″
1 1/8″ x 5/8″ or 1″
1 3/8″ x 1/2″
1 3/8″ x 7/16″
1 1/2″ x 1/2″
1 7/8″ x 5/8″
Angle Cut Triangles provide for a uniform and effective finish. They offer maximum surface contact on flat surfaces and allow for the angled sides to penetrate into comers.
Angle Cut Triangles-45°Angle Cut Triangles-45°5/8″ x 5/8″
7/8″ x 7/8″
45° Triangles provide a sharper angle for even better penetration in remote areas. The elongated shape gives better flowing action over the parts during processing
Straight Cut TrianglesStraight Cut Triangles3/16″ x 1/2″
3/16″ x 3/16″
1/4″ x 1/4″
2″ x 2″
2″ x 1″
Straight Cut Triangles offer maximum surface contact on flat surfaces. The straight sided shape gives a blocky action that helps maximize cutting action.
Angle Cut Stars or Tri-StarsAngle Cut Stars or Tri-Stars5/8″ x 1/4″
7/16″ x 5/16″ or 3/8″
1 1/8″ x 3/8″
1 3/8″ x 7/16″
1 3/8″ x 1/2″
1 7/8″ x 5/8″
Angle Cut Stars or Tri-Stars have the basic capabilities of a triangle, along with sharp points for reaching into remote areas. Ideal for gear teeth, slots or sharp corners.
Angle Cut Cylinders-22° or 30°Angle Cut Cylinders-22° or 30°1/8″ x 11/32
3/16″ x 11/32″ or 3/8″
5/16″ x 9/16″ or 5/8″
7/16″ x 7/8″
1/2″ x 7/8″
5/8″ x 1 1/8″ or 1 1/2″
7/8″ x 1 1/2″ or 1 3/4″
1 1/8″ x 1 3/4″
Angle Cut Cylinders are best for use on concave surfaces, rounded areas and holes. Can be used on a wide variety of parts.
Angle Cut Cylinders-45°Angle Cut Cylinders-45°1/4″ x 5/8″
5/16″ x 5/8″
3/8″ x 5/8″
1/2″ x 5/8″
5/8″ x 3/4″
The 45° Cylinder reaches recesses, holes and remote crevices with even greater penetration than the 22° angle cut cylinders.
Angle Cut Cylinder-60°Angle Cut Cylinder-60°1/4″ x 9/16″
5/16″ x 9/16″
3/8″ x 9/16″
The 60° Cylinder reaches recesses, holes and remote crevices with even greater penetration than the 22° or 45° angle cut cylinders.
Tri-Cyls or Cyl CutTri-Cyls or Cyl Cut3/8″ x 3/8″
5/8″ x 5/8″
1 1/2″ x 1 1/2″
Tri-Cyl or Cyl-Cut Media is a versatile shape suitable for use on a wide variety of surfaces. Made with a cylindrical surface that mates well with concave surfaces, plus two flat surfaces that perform well on convex surfaces. Tri-Cyls also combine the strong points of both triangles and cylinders to penetrate into corners, slots and angels.
SpheresSpheres11/64″
7/32″
9/32″
11/32″
7/16″
9/16″
11/16″
13/16″
Ceramic Spheres offer a smooth, rolling action which enables them to easily roll around and through parts to produce a cleaning and blending action. Provide good contact in rounded areas.
Angle Cut Ellipse-22°Angle Cut Ellipse-22°5/16″ x 3/16″ x 1/2″
7/16″ x 3/16″ x 5/8″
9/16″ x 1/4″ x 7/8″
3/4″ x 3/8″ x 1″
1″ x 7/16″ x 1″
The Angle Cut Ellipse media combines the finishing action of a flat shape with the flowing action of a cylinder. They are especially effective on concave surfaces and have anti-wedging characteristics that reduce or eliminate lodging.
ConesCones3/8″ x 1/2″
1/2″ x 5/8″
9/16″ x 5/8″
11/16″ x 3/4″
3/4″ x 7/8″
1 1/4″ x 1 1/4″
Due to its tapered shape, cone media extends media life and has anti-wedging characteristics that reduce or eliminate lodging. Good media for parts with holes.
Pyramid & Tetrahedrons

Pyramid & Tetrahedrons

Pyramid & Tetrahedrons1 1/4″
1 1/4″ x 1″
1 1/4″ x 1 1/4″ x 1 1/4″
Pyramid and Tetrahedron media offers great anti-wedging characteristics which help reduce or eliminate lodging. Good media for aluminum die cast where lodging is prevalent.

Deflashing Thermoset Parts

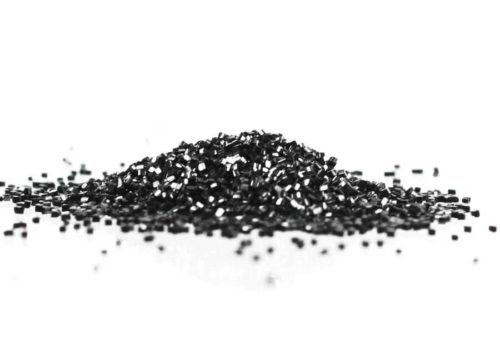

Nylon Deflashing Media

Profile

Especially for the deflashing of thermoset molds, we developed our Emsodur N. Emsodur N is a high quality, very abrasion-resistant deflashing medium which can be used in all normal types of deflashing equipment.

Properties

  • exact cubic cut
  • high impact strength
  • dimensional stability
  • abrasion resistant
  • no transfer of color
  • extremely long durability
  • less dust formation on parts

Applications

  • deflashing of thermoset parts
  • surface cleaning

From stock

  • 0.50mm cubic red and natural
  • 0.60mm cubic red
  • 0.75mm cubic red and natural
  • 1.00mm cubic red and natural
  • 1.20mm cubic red
  • 1.50mm cubic red and natural
  • 2.00mm cubic red and natural
